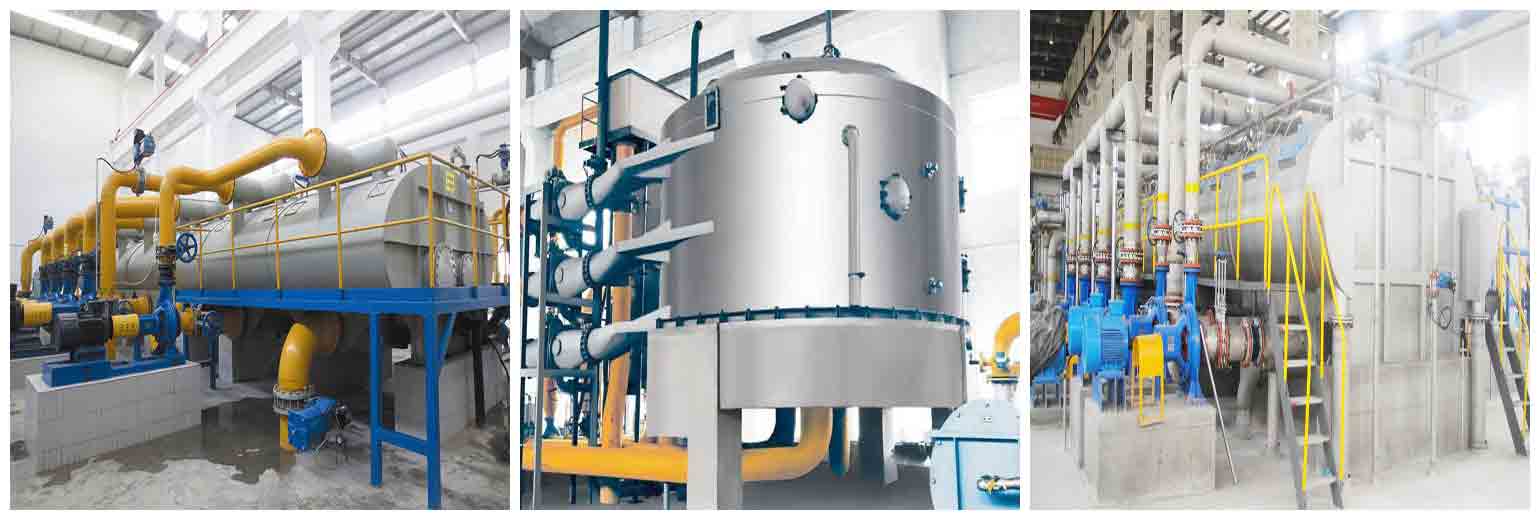

Mac-cell Flotation Machine
Application:
Used for removing ink particles in the waste pulp.
Features：
Optimized injector type can gain broad-spectrum air bubbles, which can efficiently remove ink particles and dirt within the wider size range. Thereby, be able to gain good cleanliness of pulp, at the same time, part of stickies and filler in the pulp can also be removed.
Main Technical Parameters:
| Type | HT-1 | HT-2 | HT-3 | HT-4 | HT-5 | HT-6 | HT-7 | HT-8 | HT-9 | HT-10 |
| Flow rate: m3/h | 256 | 400 | 512 | 624 | 800 | 976 | 1152 | 1344 | 1456 | 1600 |
| Layers | 4 - 5 | |||||||||
| Treating density: % | 1.1 ± 0.1 | |||||||||
| Capacity: t/d | 55-65 | 85-100 | 110-130 | 130-160 | 170-210 | 210-250 | 240-300 | 290-350 | 310-380 | 340-420 |
| Density of ink: % | 2 - 3 | |||||||||
