Refiner

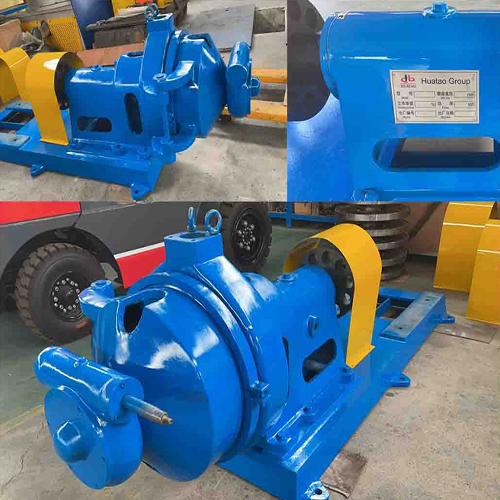

Double Disc Refiner

DESCRIPTION

Double Disc Refiner is suitable for continuous refining waste paper pulp, and wheat straw pulp, and suitable consistency is 2-5%.

Application:
1. Paper making machine DD Series Double Disc Refiner is mainly used for pulping, improving slurry beating degree to meet the paper making needs.
2. can be installed with a variety of tooth refiner plates. Suitable for various raw materials such as wood pulp, mechanical pulp, chemical pulp, waste paper pulp, etc.
3. Adopt a constant power control system, the beating effect is stable.
4. Accurate retract mechanism, easy to control, the beating effect is good

Main Technical Parameters:

Type	HT-380	HT-450	HT-500	HT-550	HT-600	HT-660	HT-720	HT-900	HT-1100
Diameter of plate: mm	φ380	φ450	φ500	φ550	φ600	φ660	φ720	φ900	φ1100
Capacity: t/d	6-20	8-80	10-100	10-120	12-150	15-200	15-250	20-400	40-800
Power of motor: kw	37	90-160	132-200	160-250	185-315	220-355	250-630	315-800	400-1250
Density: %	3 - 5
