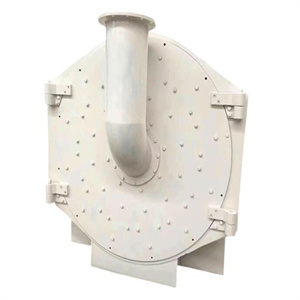

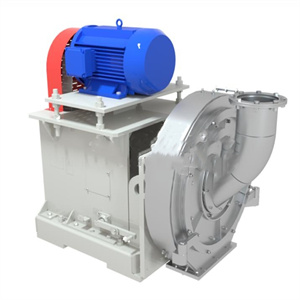

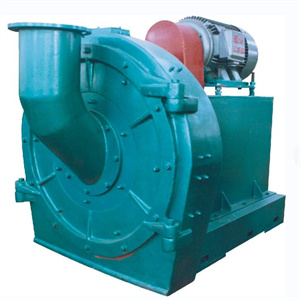

Convex-Teeth Mill Wet Corn Grinder for Corn Starch Processing

Convex-Teeth Mill Wet Corn Grinder, Degerming Mill is a convex tooth-shaped crushing equipment used for wet production of corn starch. It is mainly used to crush soaked corn kernels and is used in conjunction with the germ cyclone to separate the germ and endosperm for subsequent production. In order to improve the yield of germs, secondary crushing and secondary separation processes are generally used, and the spacing between the moving plate and the fixed plate is adjusted to reduce the breakage rate of the germs. This equipment can also be used for coarse crushing of soaked soybeans in soybean product factories.

Degerming mill is also called convex tooth mill. Due to the special distribution of its tooth shape, the material can be fully rubbed and collided between the moving and stationary teeth, and the parts with different specific gravity and toughness in the material can be separated. By adjusting the distance between the dynamic and stationary tooth discs, a variety of different materials can be crushed, or the same material can achieve different crushing effects. Degerming mill is a larger coarse crushing equipment in the corn starch wet production process. It is suitable for primary and secondary crushing of corn after soaking to separate the germ, corn husk and endosperm from each other. Since the corn has been softened after being soaked in sulfurous acid, all parts have been loose; in the degerming mill, the movable teeth of the convex teeth and the relative movement of the fixed tooth plates collide and grind, so the germ of the corn is damaged during the crushing process, which is not good for the germ. Separation thereby increases the fat content in starch.

Technical Data Sheet

Equipment Structure

The front part of the degerming grinding mill frame is fixed with a front bearing sleeve, and there is a front bearing in the front bearing sleeve. The rear part of the frame is fixed with a rear bearing sleeve, and there is a rear bearing in the rear bearing sleeve. The rear end of the main shaft is installed in the rear bearing and the front part. The spindle pulley installed in the front bearing and fixed in the middle is connected to the motor pulley on the motor shaft through a belt. The moving plate seat fixed at the front end of the spindle is located in the casing. The moving gear plate and the dial are fixed on the moving plate seat. Material tray, the static gear disc located inside the machine cover is installed on the static disc seat, and the static disc seat is connected with the static gear disc adjustment device installed on the machine cover. HUATAO convex tooth corn degerming mill has changed the degerming mill. The adjustment method of the distance between the moving and stationary gear plates is changed from the original adjustment by moving the main shaft and then the movable gear plate to the adjustment by moving the fixed gear plate, which solves the problems existing in the original adjustment method and has a simple and reasonable structure. , easy to assemble and reliable to use.

 Advantage

1) This machine avoids germ damage during corn crushing and is beneficial to germ separation and reduction of fat content in starch.
2) The machine has simple structure, reliable sealing, stable performance and large output.
3) This machine has the lowest energy consumption, is easy to operate and maintain, and has a self-protection function.
