Refiner

Conical Refiner

DESCRIPTION

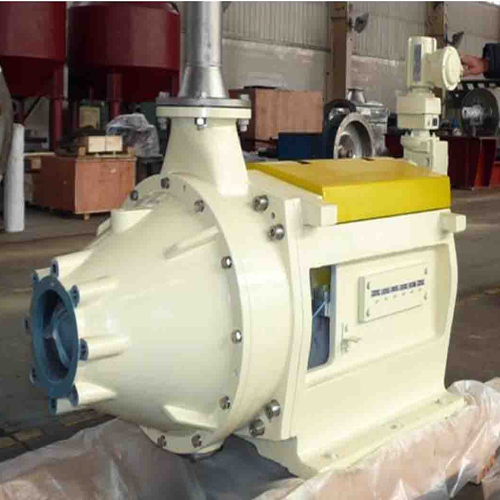

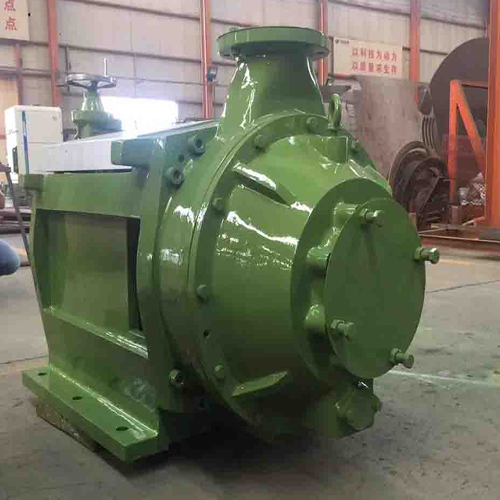

Conical Refiner
Conical Refiner is mainly used for coarse beating refining and re-pulping of broke and waster paper. It is available for long fiber pulp such as cotton, wood, and hemp. The equipment is furnished with an automatic control system and can beat with a constant power of constant energy consumption. The beating effect is stable.
Conical Refiner construction of Rotor and stator is conical.

Related Refiner Or Defibering Equipment:
Refiner, Double Dis Refiner, Conical Refiner, Claflin Refiner, High Consistency Refiner

Main Technical Parameters:

Type	HT-380	HT-450	HT-500	HT-550	HT-600
Diameter of plate: mm	φ450	φ460	φ600	φ750	φ800
Capacity: t/d	20-60	30-150	50-250	80-400	20-80
Power of motor: kw	110-132	160-315	355-500	450-900	200-250
Density (%)	3 - 5
