Why to choose HUATAO MDF Refiner Plate for your MDF/HDF plant?

Date Issued：2024-10-29

Currently most MDF manufacturers are using Andritz Refiner plate no matter their refiner is Andritz, Valmet or Pallmann or Diffenbacher or Zhongfoma. But more and more customers want to save production cost with same quality product Facing fierce competition. Thus HUATAO is best choice for you.

HUATAO MDF Refiner Plate Advantages compared with Andritz:
1.Similar lifetime but price is much more competitive.
2.The Chemical composition Cr is similar as 29% that is more durable with hardness HRC63.
3.Vibration is similar as 0.6mm/s with rotor and stator balanced.

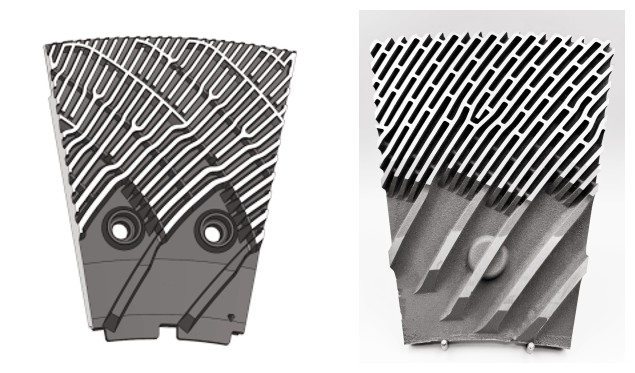

4.We can produce same pattern you have or give more suitable pattern to improve.
5.HUATAO stator thickness can be 30mm. Only we can do this in China.

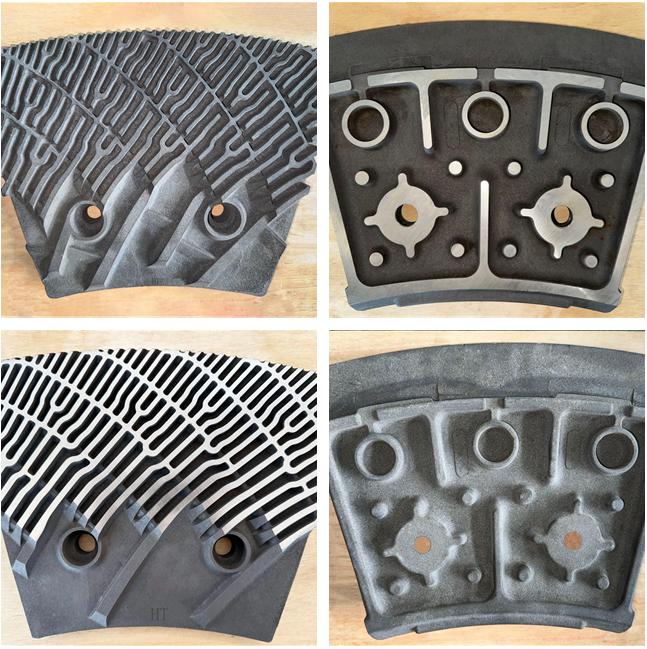

HUATAO REFINER PLATE IS TAILORED FOR EACH OF CUSTOMER.

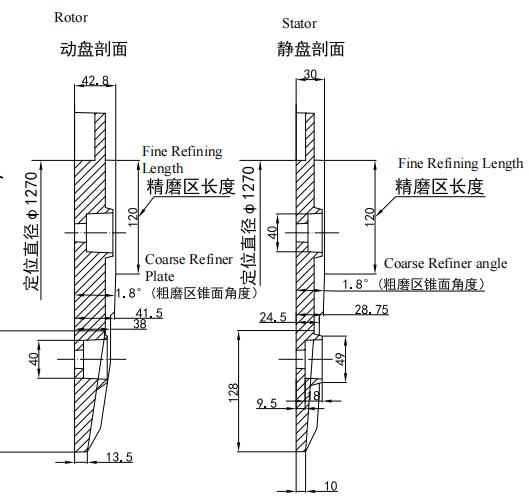

For Example, one customer use the 54” refiner plate with Andritz Refiner model 50/54-1CP.
Refiner zone is only 50” and he asked the stator thickness must be 30mm. Customer sent the samples to us by Express. Once we received samples then engineer measured all sizes and make drawing for him. Finally drawing approved,customer placed this order.

Thus no matter what is your request regarding refiner plate we will spare no efforts to satisfy you.

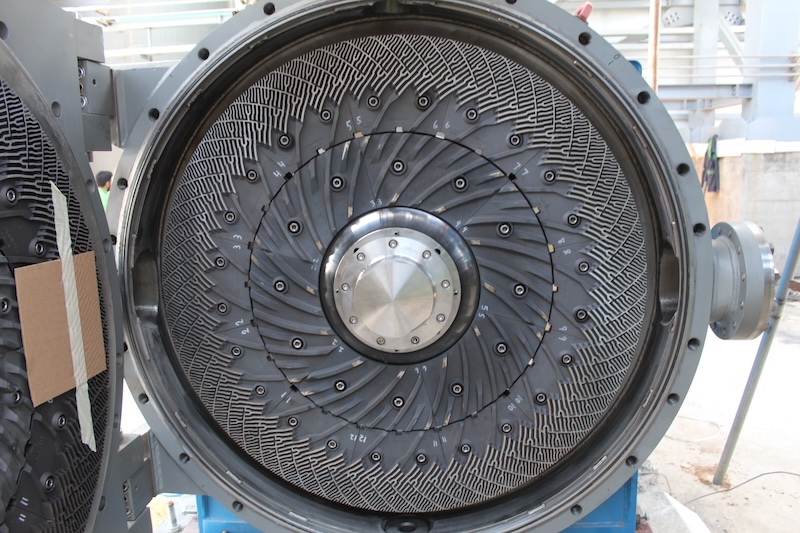

Case：Size 62” refiner plate for Andritz refiner and Pallmann installed in Russia

Case：Size 58” refiner plate for Model 54/60-1C(P) in Latin America

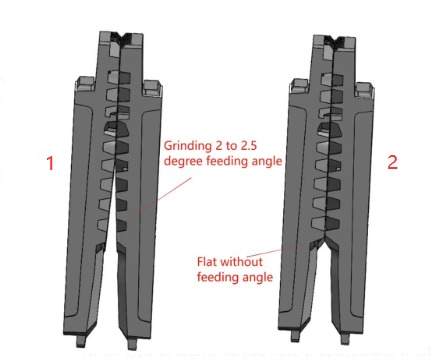

Finally please check grinding degree type 1 or 2 you prefer?

Type1: Grinding 2 to 2.5 degree feeding angle
Capacity more but the material feeds to fine refining zone directly. Once sand or stone here, this segment will be broken easily, which will much shorten the segment lifetime.

Type2: Flat without feeding angle
Relatively small capacity but the fiber quality will be very even and better. Segment lifetime will be much more.
