Thickener and Washer

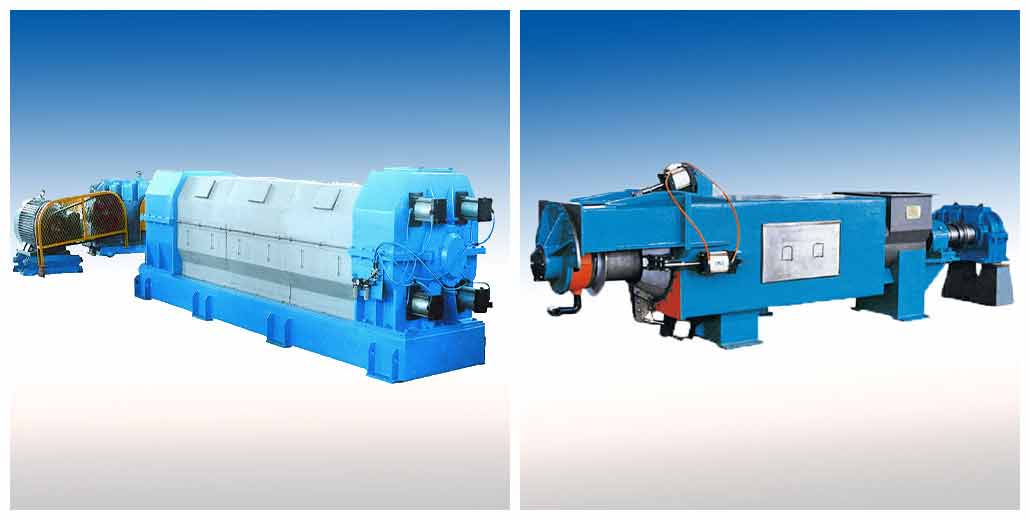

Screw Press Thickener

DESCRIPTION

Screw Press Thickener

Application:
Used for thickening the pulp.

Features:
For the screw shaft, the compression ratio is axially distributed reasonably. Thereby, efficiently ensuring the normal running of equipment.
On the discharge side, fitted with inner dewatering assembly with holes, which can efficiently secure uniformity of dewatering of inside and outside pulp layer. If necessary, use the back-flushing device to wash the inner dewatering assembly to make sure of the smoothness of the inner dewatering channel.
Pneumatic back-push assembly can secure the stability and adjust the state of discharge consistency.

Main Technical Parameters:

Type	HT-12	HT-13	HT-14	HT-15	HT16	HT-17	HT-18
Diameter of screw: mm	φ400	φ450	φ600	φ700	φ800	φ900	φ1000
Density of inflow pulp: %	10 - 14			8 - 12
Density of outflow pulp: %	25 -35
Capacity: t/d	40-50	60-80	100-150	150-200	200-300	280-350	350-450
Power of main motor: kw	30	37	55	110	132	200	280
