Inclined Screw Thickener

DESCRIPTION

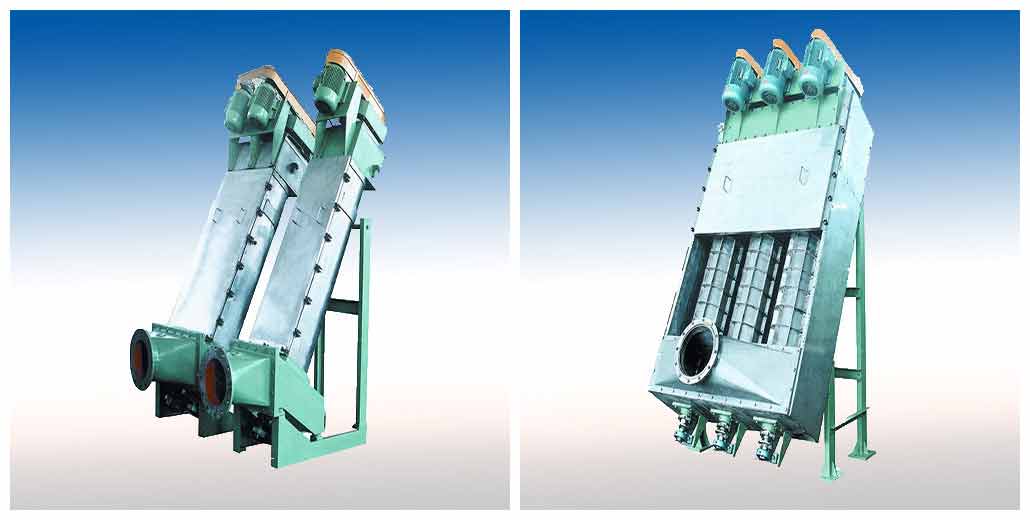

Inclined Screw Thickener

Application:
Used for thickening and washing all kinds of pulp.

Features:
Special-type screw and brush; the strong self-cleaning ability of filtering drum; high discharge consistency.
For different pulp kinds and different consistency ranges, the hole dia. of filtering drum is different, which is beneficial to reducing loss of fiber.
The height of pulp level in the pulp tank can conveniently control discharge consistency.

Main Technical Parameters:

Type		HT-1	HT-2	HT-3	HT-8	HT-9	HT-12
Normal filtrating area: m2		1x1	1x2	1x3	1.5x2	1.5x3	2x3
Density of inflow pulp: %		3 - 4
Density of outflow pulp: %		10 - 14
Capacity: t/d	OCC	18-23	35-45	50-70	50-70	80-100	100-130
Capacity: t/d	ONP	10-15	20-30	30-45	30-45	50-60	60-80
Power of main motor: kw		4	4x2	4x3	7.5x2	7.5x3	11x3
