Pulp Pump and Chest Agitator

Fan Pump

DESCRIPTION

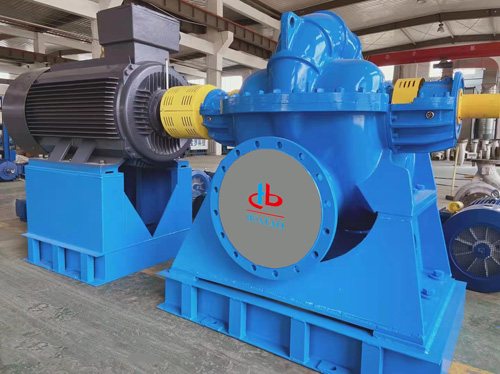

Fan Pumps
Fan pumps are used to pump paper pulp, water, sewage, or other liquid media.
Used for transporting the paper pulp concentration ≤1% in medium-high speed paper making machine for supplying pulp system.
This one set includes pump, underframe for placing pump and standard motor, cancellation coupling with "rotor assembly", coupling protection cover, anchor bolt as well as motor.

Advantages:
1. The replaceable wear-resistant mouth ring protects the pump body from being worn, and ensures that the fluid flows smoothly to the impeller to improve efficiency;
2. The blades of the double-suction impeller are divided radially and arranged in staggered and inclined directions, which have the characteristics of high efficiency and low cavitation margin;
3. Heavy-duty horizontally split pump body. The inlet and outlet flanges are located in the lower pump body. The inspection, maintenance, and replacement of rotor parts can be carried out without dismantling the piping system and the motor.
