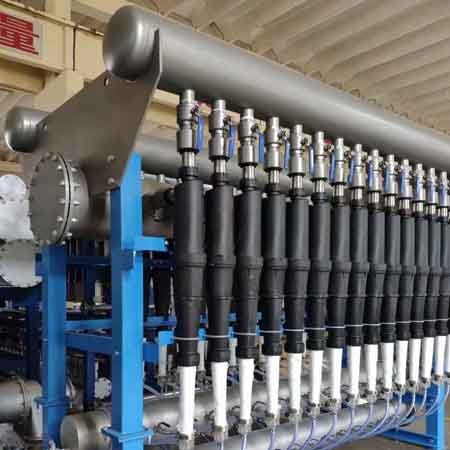

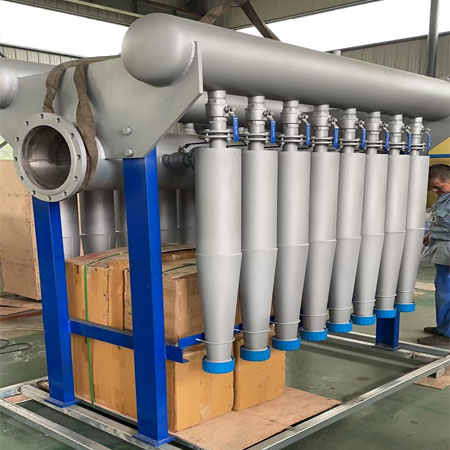

Low Density Cleaner

Low Density Cleaner , Low Consistency Cleaner

Application:
HT series low consistency cleaner is suitable for cleaning fiber suspension with the consistency of 0.4-1.2%.
It can efficiently remove light impurities, hot melt impurities, heavy impurities, pulp rejects, etc. In addition, it can also remove foam plastics, chips
fragments., ink particles, and air efficiently, which results in purifying stock in the approach system prior to the paper machine.
It can make the coarse screens in the recycled paper fiber efficient, simplify processing procedures and reduce power consumption.

Design Features:
It consists of a tangent inlet, accepts outlet, cylindrical up-part with a plug-in deaeration tube, the middle part of the cone-type separate tube, nozzle or lower part of reject discharge controller, etc.
It is a hydrocyclone cleaner. Under the pressure, stock enters the cleaner tangentially and generates high-speed vortex in the cone-tye separate tube, by which. the vortex whose direction of axes near the wall of the separate tube will be directed to the ends of the cone, and the heavier impurities are fung against the wall of the cleaner and discharged at the nozzle or by reject controller.
The accepts gather in the center of the separate tube to form the main stock flowing from compared with ordinary L. C. cleaner. It features a longer separate cone and incorporates a centered deaeration tube, which results in higher efficiency in removing impurities as well as being able to remove light impurities, hot-melt material, and air.
When using HT series low consistency cleaner. almost no jam will happen in the operation, it ensures high efficiency in cleaning stock as well as accepts with high and constant quality.

Main Technical Parameters:
