Disc Thickener

DESCRIPTION

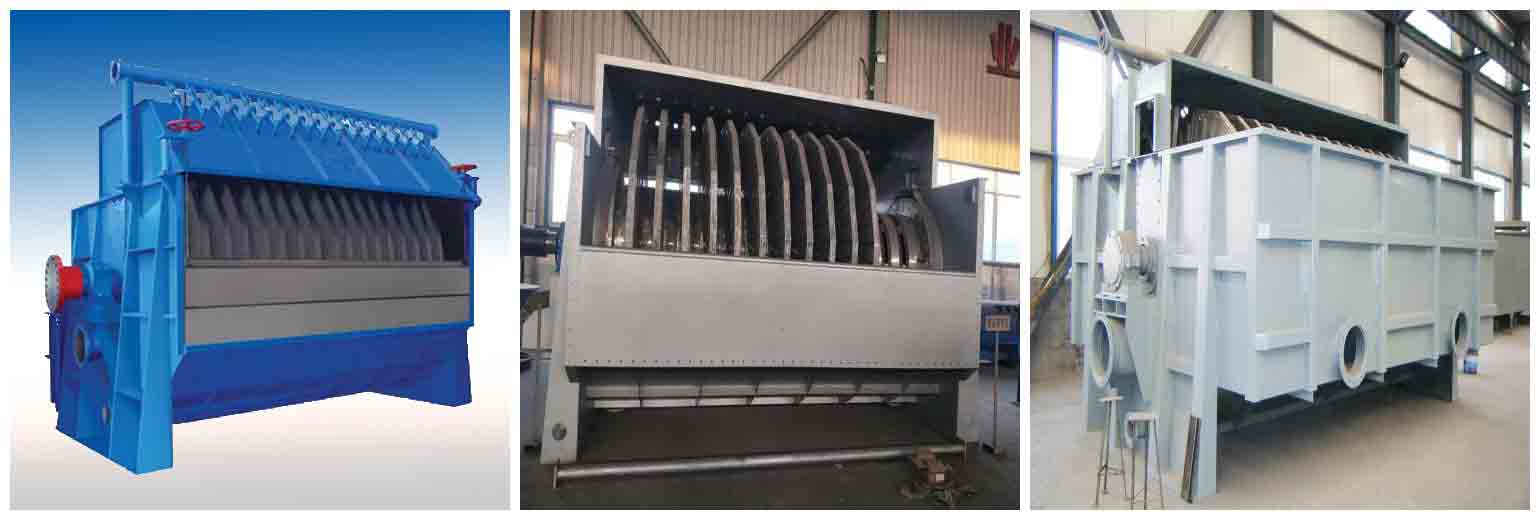

Disc Thickener
Disc Thickener is used for the thickening of low consistency pulp.

Features:
As compared with traditional gravity dewatering equipment, this equipment has such merits as greater filtering area, taking up smaller floor and larger capacity. Being fitted with stainless steel sector disc and trough body can make pulp cleanliness higher.

Main Technical Parameters:

Type		HT-2508	HT-2510	HT2512	HT2514	HT-2516	HT-3510	HT-3512	HT-3514	HT-3516
Dia of disc: mm		φ2500					φ3500
Normal filtrating area: m2		60	75	90	105	120	150	180	210	240
Number of disc: n		8	10	12	14	16	10	12	14	16
Density of inflow pulp: %		0.8 - 1.2
Density of outflow pulp: %		3 - 4
Capacity	AOCC: t/d	9 - 12					18 - 24
	ONP: t/d	5 - 7					10 - 14
Power of main motor: kw		7.5	11		15		22		30
