Wire and Felt Stretcher

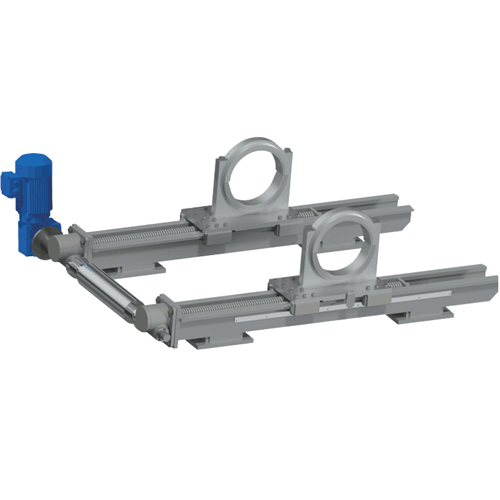

Felt Stretcher – Motorized
Can be installed in drying/wet section.
Highly compact can be installed in any position.
Made in stainless steel or painted steel.
Available standard 800-1000 mm strokes and various sizes according to the machine width.
Inserted into the line for the production of paper, its specific function is to maintain the tension of the wire/felt during the sliding phase of the paper, in non-stop production.

As the wire/felt becomes loose, the load cell installed in the wire/felt circuit or installed on the stretcher, detects the tension and sends the signal to the PLC of the control panel which moves the tensioning roll until the wire/felt automatically returns to the set tension.
The correct tension of the wire/felt improves the quality of the paper.

Our tensioners / stretchers are built for heavy-duty operations & are easy to operate even under harsh conditions. It ensures exact roll positioning with a thread spindle drive.
