Felt Auto Guide

DESCRIPTION

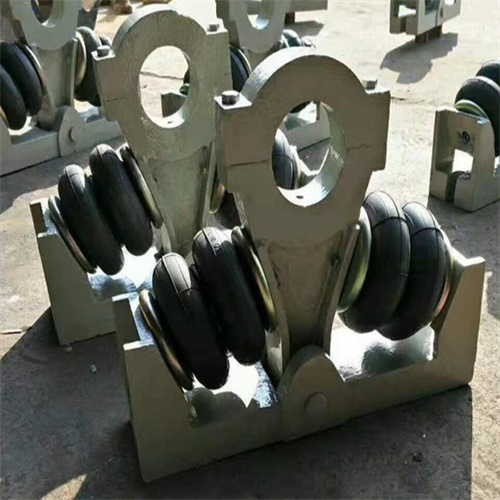

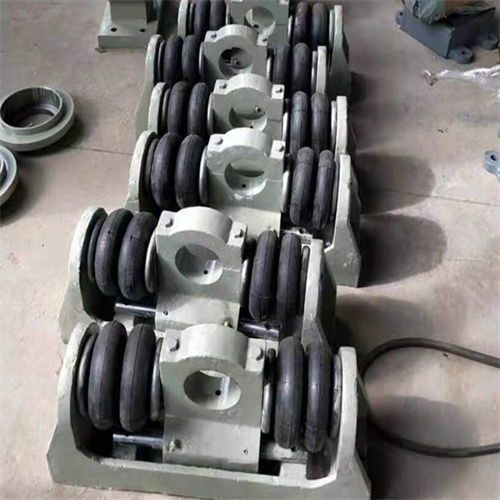

Felt Auto Guide
Auto guides for Wire & Felt are used for guiding the wire & felt accurate so that the damage and consequent loss in production is completely avoided. Installing the reliable and well-proven pneumatic automatic guiding system is an easy way to solve the wire & felt guide problem.

Mounting
The guide should be mounted on a roll which ideally is positioned between two stationary rolls. The angle of the wrap should be 1300 to 1450 for wires and 1300 to 1450 for felt to best guiding effect. The distance between the two stationary rolls should preferably be equal to the width of the wed. The palm must hang vertically to provide sensitive motion. The position of the wed is adjusted by moving the controller horizontally. The actuator can be mounted in any desired position –horizontally, vertically or angle in between.

Operation
1. A series of pneumatic calibrators with a working aperture from 100mm to 250mm can be provided.
2. It can be divided into horizontal type and swing type according to pneumatic tire installation and movement direction.
3. According to the needs of users, there are with or without manual fine-tuning.
4. The pneumatic tires used by the pneumatic corrector are of high quality and can be used with confidence.
5. Common material corrector, can also provide users with special requirements of the product.
