Inflow Fine Pressure Screen

DESCRIPTION

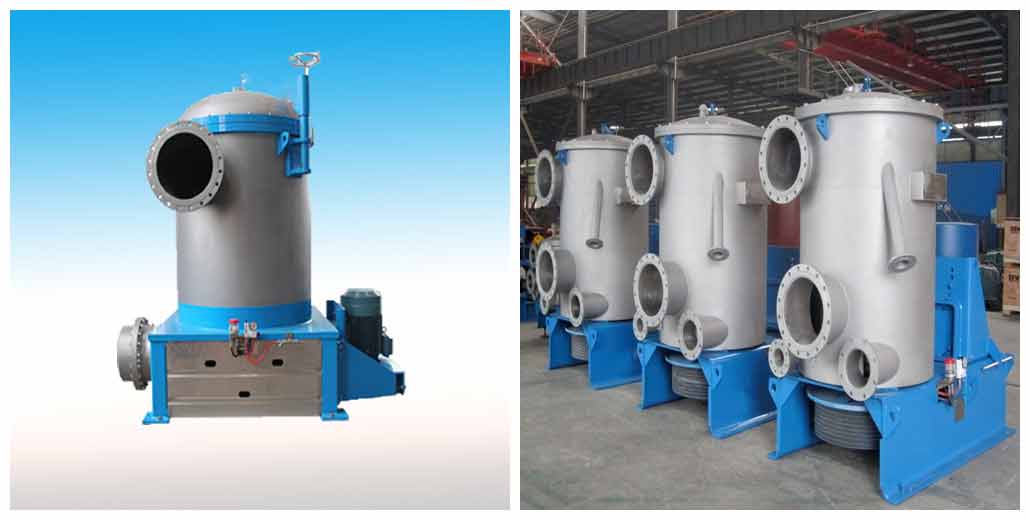

Inflow Fine Pressure Screen

Application:
Used for the fine screening of the pulp. It can effectively carry out the sticks inks and dirt to improve the quality of the paper.

Features:
Under the action of centrifugal force, heavy impurities can quickly be separated from the fiber, which can reduce the wearing of the screen cylinder.
Centrifugal force makes impurities far away from the screen cylinder. Therefore, the screen slot is not easy to be plugged of impurities.
Fiber can gently pass through the screen cylinder without disturbance of impurities. Low discharge pulse intensity is beneficial to the removal of plastic impurities.

Main Technical Parameters:

Type	HT-81	HT-82	HT-83	HT-84	HT-85	HT-86
Screen area: m2	0.8	1.5	2.5	3.5	4.5	6
Screen density: %	0.8 - 2.0
Range of screen hole: mm	φ1.2 - φ1.8
Range of screen slot: mm	0.10 - 0.25
Flow rate: L/S	35-80	60-140	110-250	150-340	200-450	280-660
Power of motor: kw	30	45	55	75	90	132
