Out Flow Pressure Screen (Fine Screen)

DESCRIPTION

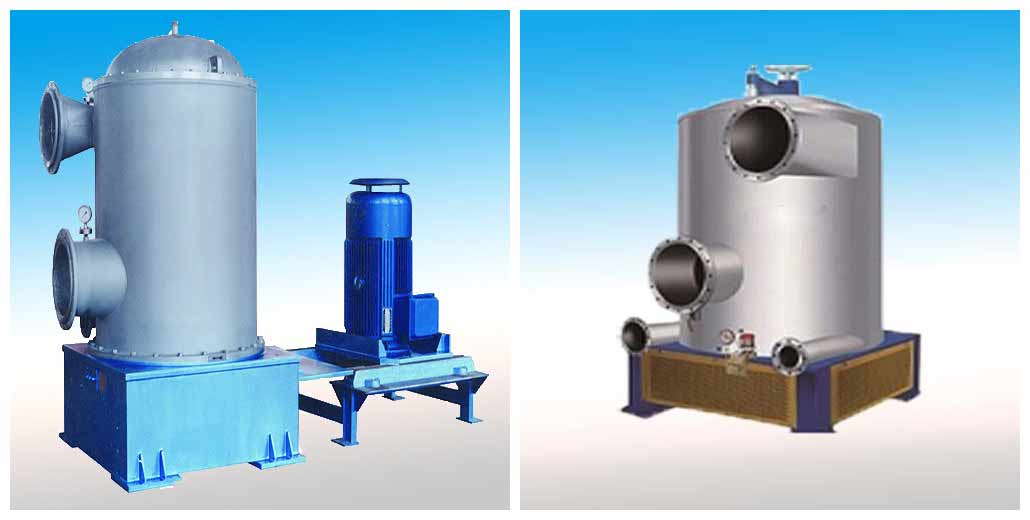

Paper Mill Outflow Pressure Screen/Coarse Screen/Fine Pressure Screen
Used for fine screening waste pulp and all kinds of coarse and fine pulp.
1. The rotor is rotated outside of the sieve drum, and the heavy impurities flow away from the sieve drum to avoid clogging the screen cut and prolong greatly the service life of the sieve drum.
2. It has a low pulse, high screening efficiency and reliable operation.

Features:
This equipment can be fitted with energy-saving rotors: coarse screening.
Rotor, fine screening rotor, and headbox screening rotor.
The corresponding shell body and screen cylinder can match each.
Different rotor, thereby achieving screening different pulp kinds with
High screening efficiency and low power consumption.

Main Technical Parameters:

Type		HT-31	HT-32	HT-33	HT-34	HT-35	HT-36
Screen area: m2		1.2	2	3.2	4.2	4.7	5.7
Slot screen	Width of screen slot: mm	0.15 - 0.45
	Screen density: %	0.8 -2.0
	Flow rate: t/d	5-30	10-50	25-120	40-200	60-300	80-400
Power of motor: kw		15	30	45	75-90	110-132	132-160
