Thickener and Washer

Twin-net-Squeezer

DESCRIPTION

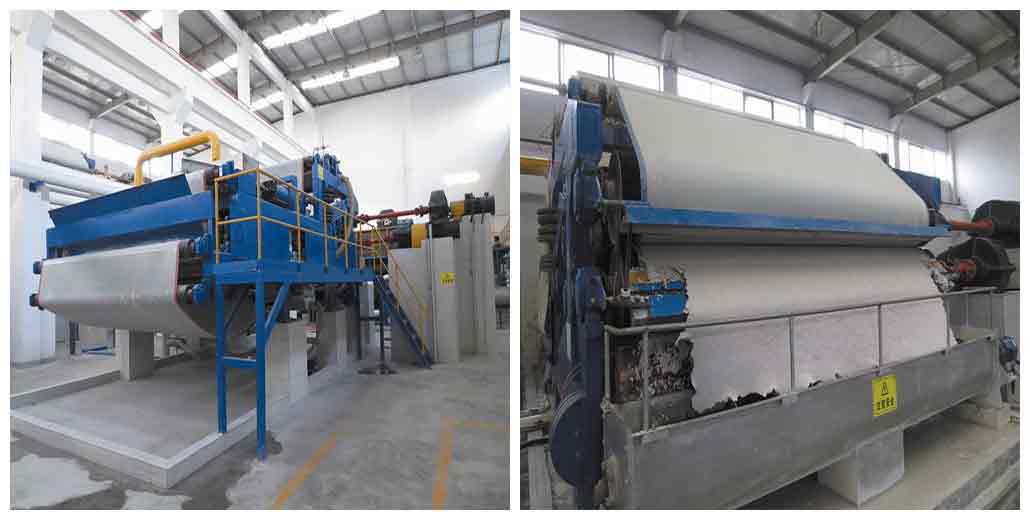

Twin-net Squeezer

Application:
Used for thickening and washing the mechanical pulp, chemical pulp, and waste paper pulp, especially suitable for heat dispersion systems or high consistency pulp before bleaching.

Features:
Frequency control / Long pressure area, high thickening ratio
Wide adaptability, less fiber lost / Stable consistency, smooth operation.

Main Technical Parameters:

Type	HT-15	HT-20	HT-25	HT-30	HT-35	HT-40
Working width: mm	1500	2000	2500	3000	3500	4000
Density of inflow pulp: %	2 -- 4
Density of outflow pulp: %	35 -- 40
Power of main motor: kw	15	22	30	37	30x2	37x2
Capacity of product: t/d	30-40	40-60	60-100	120-200	150-250	170-280
