External Rotary Consistency Transmitter

Consistency transmitters are integral components in many industrial processes. They are able to offer real-time insights into substance concentrations, allowing industries to maintain product quality, operational efficiency, and regulatory compliance.

Consistency transmitters are extensively used in industries like pulp and paper, chemical, food and beverage, and wastewater treatment. In pulp and paper, these transmitters play a crucial role in monitoring pulp consistency throughout the papermaking process. By providing continuous data on the concentration of fibers, fillers, and additives, consistency transmitters enable paper manufacturers to make real-time adjustments to achieve desired paper properties.

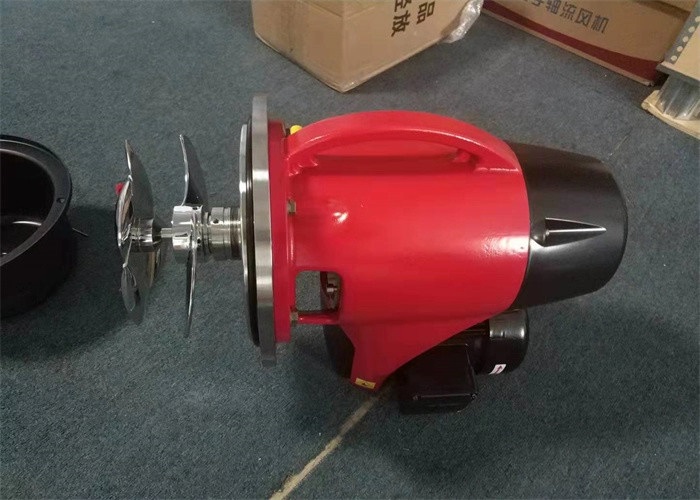

External Rotary Consistency Transmitter
External Rotary Electronic Online Pulp Consistency Transmitter

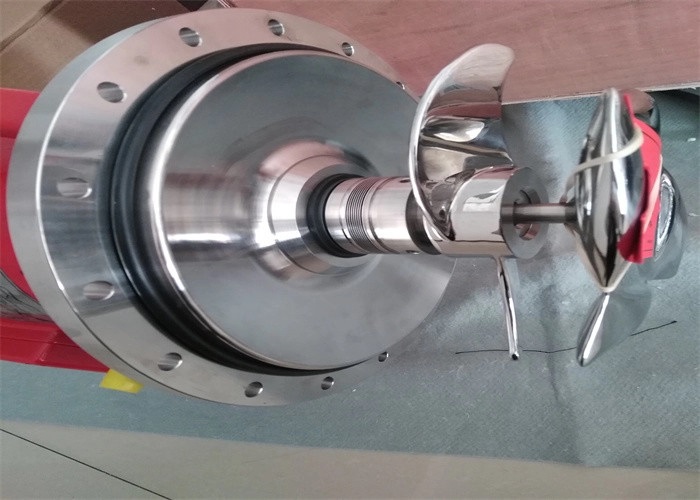

External rotary pulp consistency transmitter is mainly composed of a controller, external rotary concentration sensor, measuring bucket, diluted water valve, four parts

Specification
Measuring range: 1 - 6%
Working environment: up to 60℃
Principle: Pulp shear force
Power: 220V
Accuracy: 0.02%
Sensor power: 380V
Sensitivity: up to 0.01%
Analog signals: 4-20mA
Repeat accuracy: 0.2%
Digital signal: RS422
Cycle: 1s - 20s
Ratio: 0 - 100
