Consistency Transmitter RC81

Consistency transmitters are integral components in many industrial processes. They are able to offer real-time insights into substance concentrations, allowing industries to maintain product quality, operational efficiency, and regulatory compliance.

Consistency transmitters are extensively used in industries like pulp and paper, chemical, food and beverage, and wastewater treatment. In pulp and paper, these transmitters play a crucial role in monitoring pulp consistency throughout the papermaking process. By providing continuous data on the concentration of fibers, fillers, and additives, consistency transmitters enable paper manufacturers to make real-time adjustments to achieve desired paper properties.

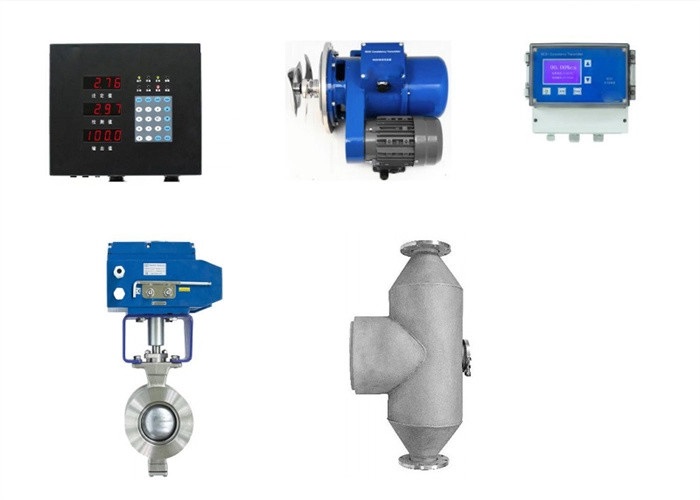

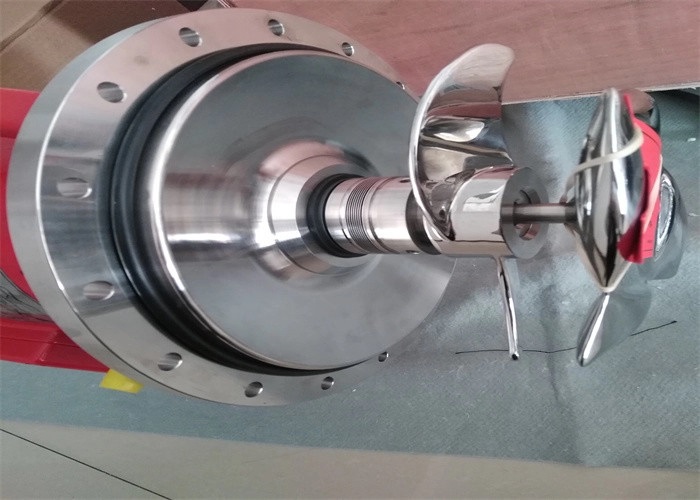

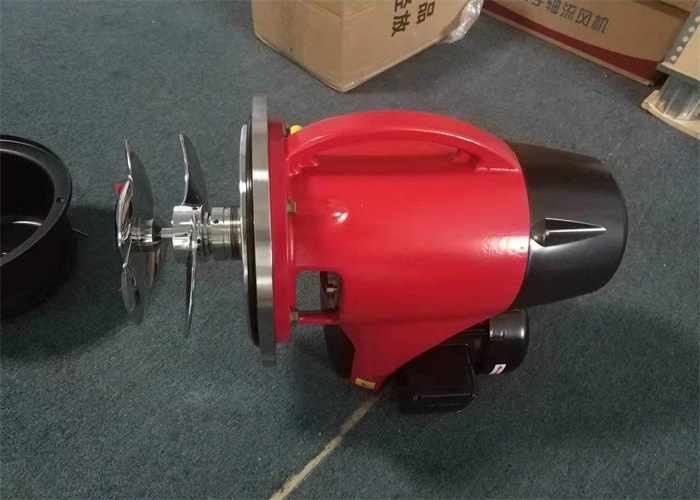

Consistency Transmitter RC81:

RC81 Technical Parameters:
1. Working range: 1~16% concentration (according to measuring components)
2. Sensitivity: better than ±0.005%
3. Measurement accuracy: close to sensitivity under stable conditions
4. Damping time: 1~100S
5. Maximum working pressure: 1MPa, 80°C shell: cast aluminum
6. Contact medium part: stainless steel
7. Motor: 3-phase 380VAC, 370W, IP54
8. Analog signal output: 4~20mA, load 0~750

Main Features:

1. Liquid crystal display, which can realize multi-point, parabolic calibration and easy to operate calibration;
2. Signal damping and filtering are very low, signal to noise ratio is high, and has high precision;
3. Not affected by pulp, fiber type, freeness, Kappa number, flow rate, pressure, etc.;
4. It is little affected by pH and temperature, and the temperature can be compensated;
5. Unaffected by pressure, air bubbles, and electrical conductivity;
6. Fast response, short reaction time and control dead time, and good controllability;
7. It can be installed on horizontal, vertical, or inclined pipes. The sensor shaft should be horizontal and the motor should be under the sensor.
