Fiber Fractionating Screen

DESCRIPTION

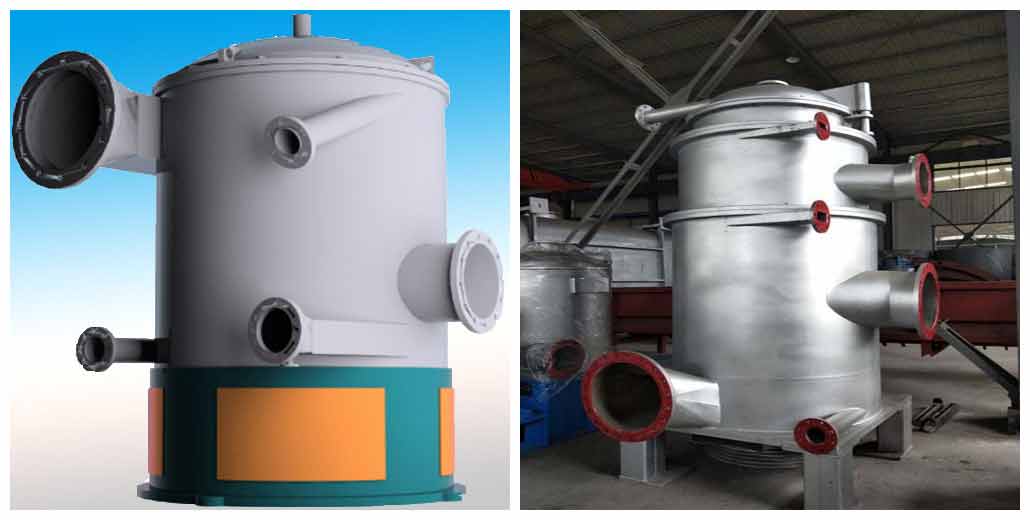

Fiber Fractionating Screen

Application:
Provides a practical, economical and proven method to separate long and short fibers in a furnish continuously Long or short fractions can be channeled to appropriate multiple grades In a single grade application, short fractions can by-pass refiners needed only for long fiber treatment, and the two streams are recombined for preparation of improved stock.

Features:
With multi-foil of rotor design, ensure a unified speed of fiber passing through screen slot on the height of the whole basket, overcome the phenomenon of increasing consistency effectively.
With the reasonable housing design, making fluidization of screening area, even pulse, high treating consistency, strong fiber fractionation effect.
The ration of long to short fiber is adjustable and maintains stability.

Main Technical Parameters:motor:

Type	HT-63	HT-64	HT-65	HT-66
Screen area: m2	1.2	2	3	4
Treating density: %	1.5 -- 2.5
Capacity: t/d	110-280	170-410	250-620	330-800
Pressure of inflow pulp: mpa	0.15 -- 0.35
Power of motor: kw	75-90	90-110	132-160	160-200
