REFINER AND REFINER PLATES

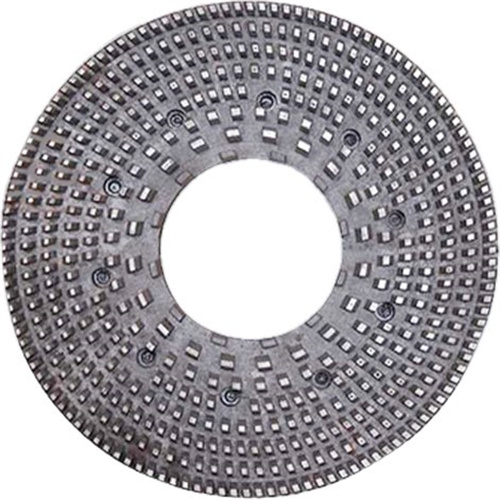

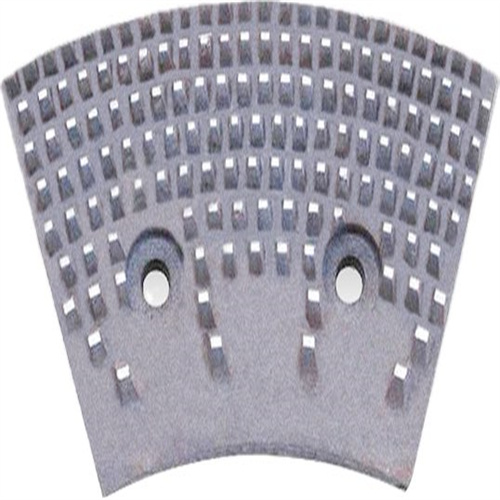

Disperser Disc for Heat Disperseing System

DESCRIPTION

The dispersion systems for pulp and paper mill, is used to dispersing and removing ink, toner and contaminants such as plastics (stickies) from recycled paper and packaging materials into a invisible size. It is an economical way for remove impurities in the pulp.At same time, it also can improve the strength for fibers.



For disperser disc,we are professional to design and make various pattern to improve plate life, while the use of varying tooth angles can further optimize energy and dispersing efficiency.



Features



Enhanced dispersing efficiency

Reduces dirt and stickies

The longer the edge length,the more compression and shear pulses

Maintain necessary open areas



Technical Parameters

Product Name

Disperser Disc for Heat Dispersing System

Material

17-4PH,Precipitation-hardening S.S

Applied Machine

Andritz,Valmet,Parason,Cellwood,etc

Model

KD450, KD710, KD1050, KD1250...
