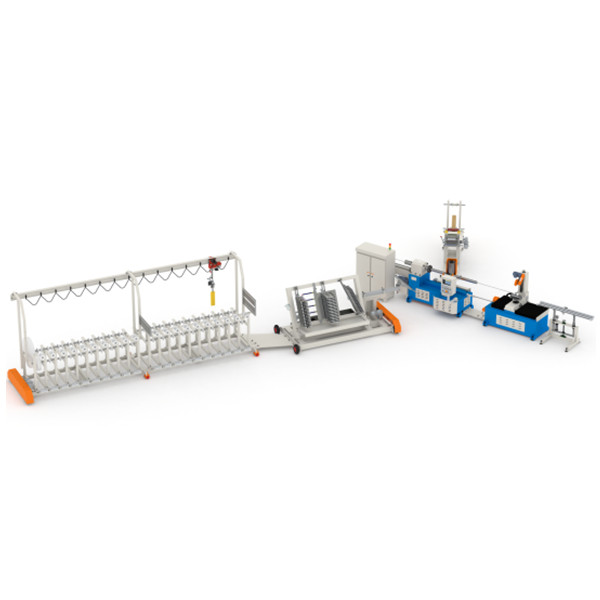

Spiral Paper Tube Machine HT23-120
The Spiral Paper Tube Machine is mainly used to chemical Fiber paper tube、all kinds of packaging paper can, all kinds of small industrial paper core. This model can produce spiral paper tube with gluing,winding,cutting together on.
Designing idea: simple、compact、stable.
Standard for making paper tube 3”（ID76.5), Max wall thickness under 8MM, biggest tube ID can up to 200MM.
|
Parameter |
|
| Number of layer | 3-16layers |
| Max-inner diameter | 200mm |
| Min-inner diameter | 20mm |
| Max-thickness | 8mm |
| Min-thickness | 0.5mm |
| Way of Mandrel fixing | Flange & tightening |
| No of winding nose and belt | Two noses and one belt |
| Way of cutting | pneumatic Single circular cutter |
| Way of glue feeding | Double sides |
| Way of length locating | Encoder |
| Operator | 1-2 Person |
| Production speed | 3-20M/Min |
| Speed control | Inverter |
| Input power | Custom |
|
Size(mm) |
|
| Mainframe:L*W*H | 5500mm*1700mm*2000mm |
| Area: L*W | 16000mm*7500mm |
| Wheel hub diameter | 215mm |
| Wheel hub height | 400mm |
| Min tread | 750mm |
| Max tread | 950mm |
| Total weight | 3900Kgs |
|
Enclosed component |
|
| Bottom/face paper device | Have |
| Installation tool | Have |
| Mandrel | 1Pc |
| Belt | 1Pc |
|
Control system |
|
| PLC Control | DELTA |
| Man machine interface | Color touch screen weinview 6070T |
| Program Version | HT-PTM5.0 |
| Inverter | YASKAWA 7.5KW |
| Actuator | CHNT |
| Signal component | OMRON |
| Pneumatic component | AIRTAC |
| Synchronism control | X axis servo screw /Z axis step screw |
| Synchronous track cutting system | Servo synchronous track cutting |
| Remote controller | Optional |
| Tube holder | Have |
| Angle of belt control | Electric |
| Belt adjustment | Hydraulic |
| Angle of mainframe | Have |
| Auto stop when lack of paper | Have |
| Auto glue feeding | Screw pump 1.5KW |
| Auto lubricating | Have |
| Tension adjustment | Mechanical |
| Type of paper reel stand | Integral |
| Belt | Canvas |
|
Transmission system |
|
| Main motor power | 7.5KW |
| Revolving speed of winding nose | 47R/Min |
| Output torque of winding nose | 1360N.M |
| Way of transmission | Gear & Chain |
| Model of transmission chain | 12A*2 |
| Drive of winding nose | 2 Wheels |
| Cutting motor | Stepping motor/Wanxin Gear motor |
| Bearing | HRB |
Welcome to contact with us for machine runing video!
