Paper Tube Machine HT23-300

DESCRIPTION

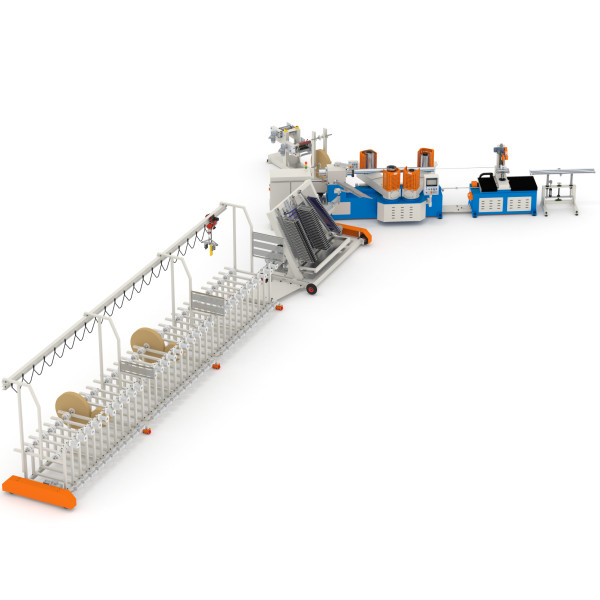

Paper Tube Machine HT23-300

This series of paper tube machine features a design philosophy of simplicity, companctness and stability.

Standard for making paper tube 6”（ID152.4MM), Max wall thickness under 15MM, maximum tube ID can up to 300MM.

The oaoer tube machine could use to cut all kinds of film winding, paper winding, all kinds of middle sized industrial paper core. It can produce spiral paper tube with gluing ,winding, cutting together on.

Features:

1. Main structure made by thicker steels which are finished by processing of re-cutting and welding, make machine much more stable and strong.

2. Main transmission adopt gear speed cut , low-noise, low-heating, high revolution, high torque.

3. Main motor adopt Vectorial high torque inverter speed adjusting.

4. Equipped with hydraulic device to adjust belt tension, with belt tension sensor and belt angle sensor, both can be adjusted automatically.

5. Equipped with synchronous cutting system, cutting table adopt high precision ball screw and high performance server motor drive.

6. Equipped with pulse length fixation control, cooperated with front feedback compensation function, can make sure the same length in different producing speed.

Parameter
Number of layer	3-24 layers （48layers customizable）
Max-inner diameter	300mm
Min-inner diameter	25mm
Max-thickness	15mm
Min-thickness	0.5mm
Way of Mandrel fixing	Flange & tightening
No of winding nose and belt	Four noses and Two belts
Way of cutting	pneumatic Single circular cutter
Way of glue feeding	Double sides
Way of length locating	Encoder
Operator	1-4 Person
Production speed	3-20M/Min
Speed control	Inverter
Input power	Custom
Size(mm)
Mainframe:LWH	5750mm2000mm2300mm
Area: L*W	18000mm*6000mm
Wheel hub diameter	245mm
Wheel hub height	400mm/580mm
Min tread	900mm
Max tread	1150mm
Total weight	7000Kgs


Enclosed component
Bottom/face paper device	Have
Installation tool	Have
Mandrel	1Pc
Belt	2Pcs
