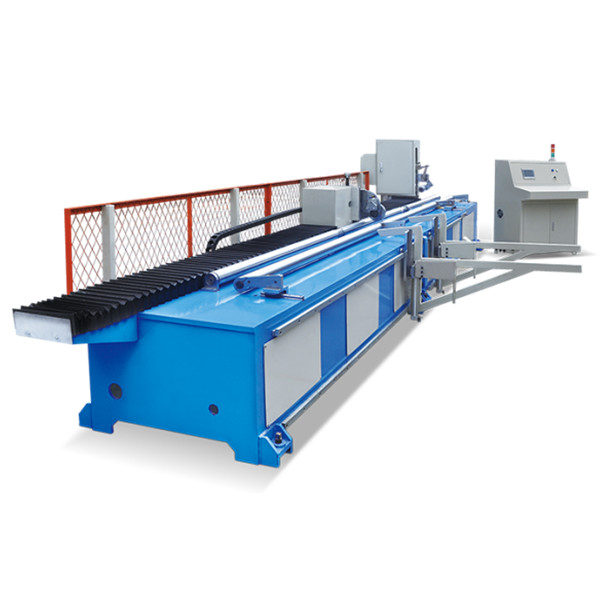

Big Size Paper Tube Saw Blade Cutting Machine HT-A9

DESCRIPTION

Big Size Paper Tube Saw Blade Cutting Machine HT-A9

The Big Size Paper Tube Saw Blade Cutting Machine HT-A9 is Mainly used for cutting high strength paper core. It has three cutting length ranges : 4500MM max, 7000MM max, 9500MM max. Cutting diameter ranging from 75 to 305MM OR from 200 to 800MM

Feature:

  1. Main shaft controlled by inverter, have function of speeding down smoothly and shaft stopping。
  2. High performance control(can program controller) in the part of central controller .
  3. Colorful touching man-machine operating in operation panel, input value of cutting length and monitor the working condition.
  4. Cut-table moving located by Servo system,drive by high-precision rolling bead screw,cutting resolution up to 0.01mm.
  5. Cutter adopt saw blade with high rotating speed,the smooth cut, equipped with auto dust collecting & cleaning device.
  6. Cutting shaftless, greatly save the cost of cutting shaft making。
  7. Tube production operation Full automatically, warning if problem happens.
  8. Auto loading and unloading



Parameter

Cutting length 50-4500mm
Cutting diameter 75-305mm
Blade No 1SET
Cutting way Saw blade cutting
Fixing way Auto chuck
Operator 1Person
Way of blade moving Pneumatic
Speed adjust Inverter
Input power Custom
Cutting thickness 10-20mm

Size(mm)

Mainframe:L*W*H 8200mm*1200mm*1880mm
Total weight 3800Kgs
Main motor power 1.5KW
Rotate speed of main shaft 2000-3000r/min
Cutting motor 3.0KW
Cut-table moving power 1.3KW Servo motor



Control system

PLC Control DELTA
Man machine interface Taiwan 6070I
Program Version HT-A9
Inverter YASKAWA 1.5KW
Actuator CHNT
Signal component OMRON
Pneumatic component AIRTAC
Servo motor YASKAWA
Moving screw TAIWAN SHANGYIN
Moving track TAIWAN SHANGYIN
Cutter inverter YASKAWA 5.5KW

Enclosed component

Cutting blade 2Pcs
Useful tool 1Set
