Single Shaft Paper tube cutting machine 2000mm

DESCRIPTION

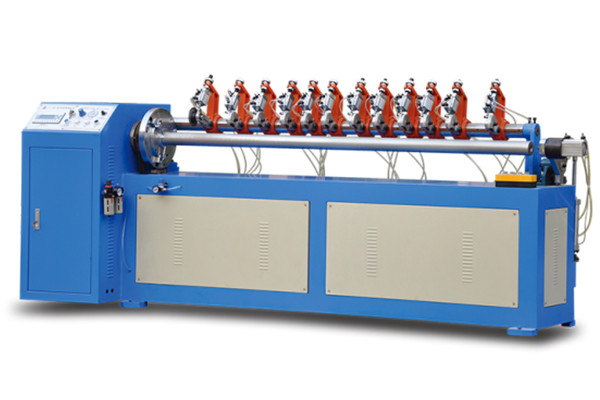

Single Shaft Paper tube cutting machine 2000mm - HT-A3

Single Shaft Paper tube cutting machine 2000mm apply to re-cut all kind of high-end paper tube, like chemial fiber paper tube, OPP film paper tube, adhesive tape paper tube, fireworks paper tube.

Feture:

High performance control(can program controller) in the part of central controller.
Text man-machine operation in operation panel, directly input value of cutting length and monitor the working condition.
Cutter drive independently, set ime cutting and cutter moving or stop separately.
Adopt allif steel cutter with smooth cut.

Parameter
Cutting length	80-2000mm
Cutting diameter	50-170mm
Blade No	12SETS
Cutting Speed	3-6Pcs/Min
Cutting way	Tube spinning ， shaft not
Load/unload way	Manual
Fixing way	Auto chuck
Operator	1Person
Way of blade moving	Pneumatic
Speed adjust	Inverter
Input power	Custom
Cutting thickness	2-10mm
Cutting shaft	1Pc
Size(mm)
Mainframe:LWH	3300mm900mm1450mm
Total weight	1000Kgs
Main motor power	3KW
Rotate speed of main shaft	300-1000r/min
Enclosed component
Useful tool	1SET
Cutting blade	2Pcs

Control system
PLC Control	DELTA
Man machine interface	E-vil 304L
Program Version	HT-A3
Inverter	YASKAWA 3.7KW
Actuator	CHNT
Signal component	OMRON
Pneumatic component	SANZHENG
