Paper Straw Making Machine HT100

DESCRIPTION

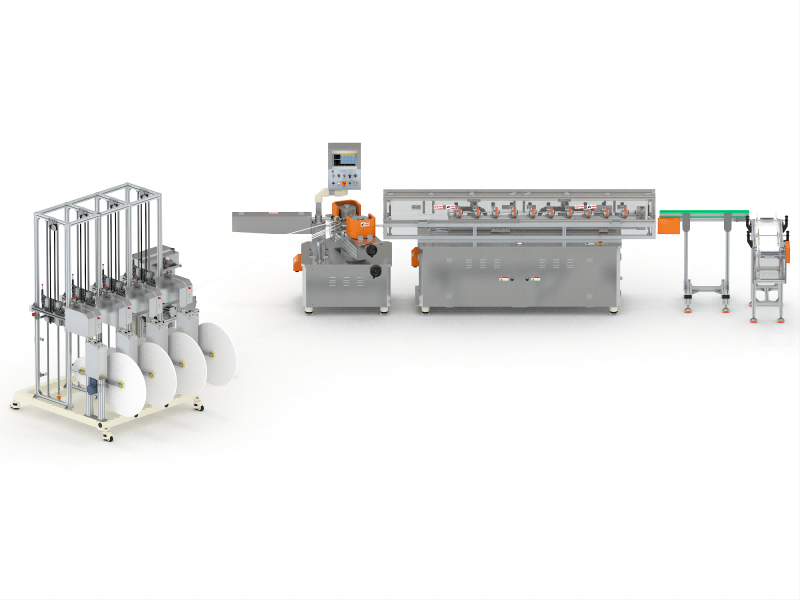

Paper Straw Making Machine HT100

The Paper Straw Making Machine HT100/paper straw machine/paper drinking straw making machine mainly used for paper straw making, cartridge tube etc, multi-section cutting.

Standard production for 1Inch paper tube, thickness less than 1mm. Food grade production standard.

Features

1.Body structure,Heavy-duty steel welded after NC cutting,Stable and Small Vibration.
2.Paper stand,integral high speed design,constant paper tension control with Auto splicer
3.Glue stand,glue temperature control,feeding amount control.
4.Simple appearance,all motors put inside,make it easy for cleaning.
5.Safety as the core design element,transformation part protected,covered with 1.2mm thick stainless steel.
6.Stable,simple transformation principle,maintaining-free design,reduce maintaining frequency during operation.
7.High speed,120m/min paper feeding,up to 100m/min tube production speed.
8.Network,Industrial 485 cable,Ethernet cable,wireless WiFi network,4G network,and distributed control system.
9.Intelligence,central monitoring,real monitoring run state of all equipments,production data can flow into ERP system for data collecting,Meanwhile,Engineer to be informed when machine has errors.

Parameter
Number of paper	3Plies
Max-outer diameter	20mm
Min-outer diameter	5mm
Max-thickness	1.5mm
Min-thickness	0.5mm
Min-length	90mm
Output speed	100m/min
Rewinding noses	Two noses/One belt
Cutting way	10Blades pneumatic
Glue way	Double-face /Single-face
Length fixation	Encoder
Operator	1People
Way of shaft fixing	Pushing
Speed control	Servo
Power input	3*380V
Size(mm)
Mainframe:LWH	351112651800mm
Area: L*W	17000*6000
Wheel hub diameter	215mm
Wheel hub height	125mm
Min tread	320mm
Max tread	500mm
Total weight	1900Kgs
