Paper Products Making Machinery

Paper Roll Slitter Rewinder HT1600

DESCRIPTION

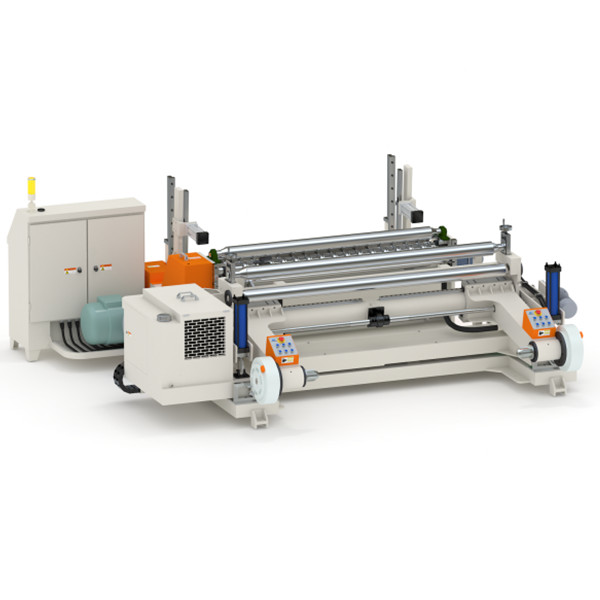

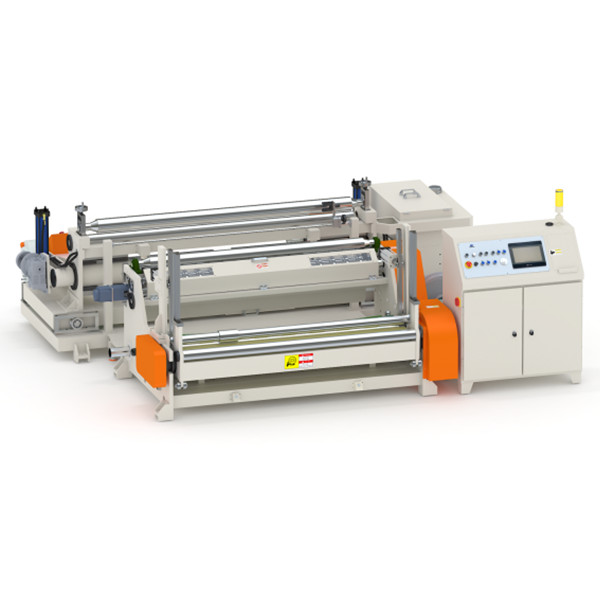

Paper Roll Slitter Rewinder HT1600

The paper roll slitter rewinder machine is used to slit and rewind jumbo paper rolls into smaller rolls of the desired width. This is essential for producing materials like edge protectors, paper tubes, and other paper-based products.

It is suitable for slitting all kinds of craft paper , tea paperboard, grass paperboard, calico and art paper.

Feature:

1. Cutting with double cutter, the cut is smooth and tidy.

2. Adopt rewinding by single shaft, tight paper reel and big diameter paper reel

3. Up and down both shafts rotate.

4. Equipped with computerized error correction system, auto correction

5. Equipped auto paper tension control, keep the same tension from small size to big size all the time when rewinding.

6. Uploading by Hydraulic device shaftless.

７. Adopt PLC controller, colorful touching screen - main-machine interface

Control system
PLC Controller	DELTA
Man machine interface	Colour touch screen Weinview 6070i
Program Version	HT-1600
Actuator	CHNT
Signal component	OMRON
Pneumatic component	AIRTAC
Inverter	YASKAWA 15KW
Hydraulic system	DEKEMA (Taiwan)
Outfit assemble
Loading material	Hydraulic clamping type
Unloading material	Hydraulic
Edge correcting motor	Screw correction automatically
Meter Counting	Auto
Tension adjust	magnetic powder tension control system, Auto &Manual
Taper chuck	3 Inches
