HT-A5 single shaft paper tube cutting machine

DESCRIPTION

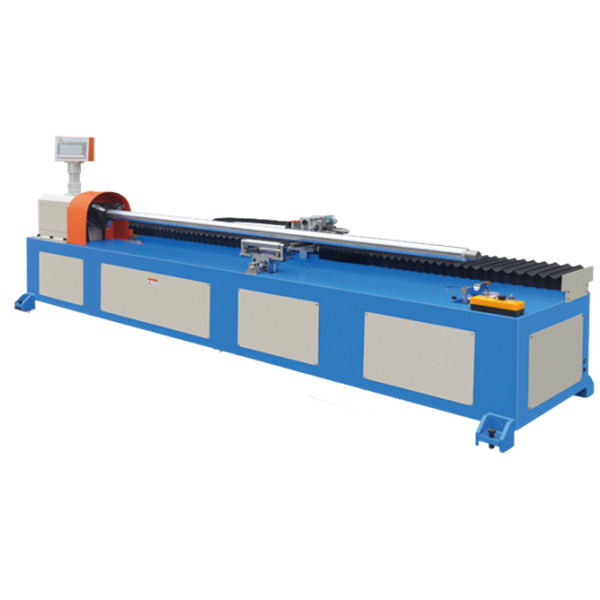

HT-A5 Single Shaft Paper Tube Cutting Machine

Single shaft paper tube cutting machines are designed for high-speed, efficient cutting of paper tubes or cores. These machines typically feature a single rotating shaft with a circular cutting blade that cuts the paper tubes to the desired length.

Feature：

Using Servo system locating, High precision ball screw transmission, cutting resolution ratio up to 0.01mm.
Plc control, colorful touch screen operation.
Error auto detecting and warning.
Suitable for cutting big quantity and short length OR frequently changing cutting length
Cutting sensor, to protect damage of shaft.
Regularly auto lubricating system, save labor and lubrication oil etc.

Parameter
Cutting length	Max 3000mm
Cutting diameter	50-200mm
Cutting knife	1Pc
Cutting speed	25M/MIN
Cutting way	Tube spinning, shaft not
Load/unload way	Manual
Fixing way	Auto chuck
Operator	1Person
Knife feeding way	Pneumatic cutting
Speed adjust control	Converter
Input power	Custom
Cutting thickness	1-15mm
Size（mm）
Main size:LWH :	3400mm1500mm1550mm
Total weight	3000KGS
Engine power	5.5KW
Revolving speed	300-1000r/min
Carriage moving power	1.3KW Yaskawa servo motor

Control system
PLC Control	Delta
Man-machine interface	Weinview6070
Program version	HT-A5-1
Actuator	CHNT
Signal component	OMRON
Pneumatic component	AIRTAC
Servo motor	YASKAWA
Move screw	TAIWAN SHANGYIN
Move track	TAIWAN SHANGYIN
Enclosed equipment
Cutting knife	2Pcs
Application	1SET
